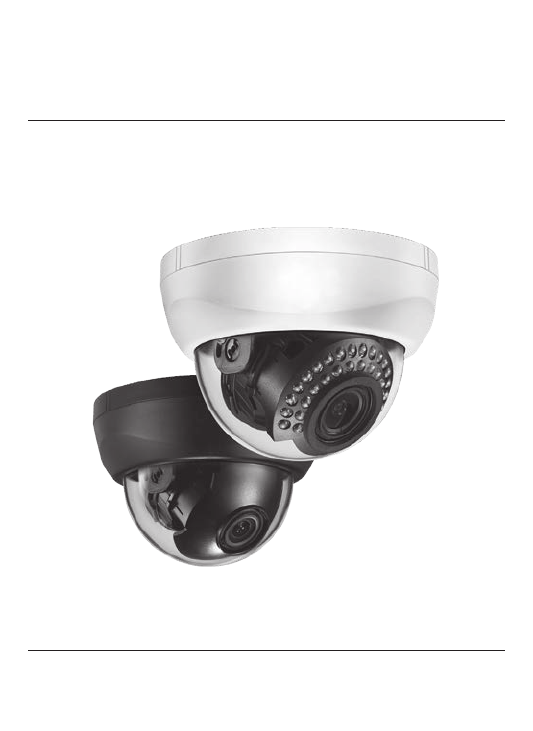

HD CCTVDigital Video Dome CameraOPERATION MANUALThank you for choosing our high quality camera. Before attempting to connect operatethis unit, please

6. INSTALLATION10NO PART NAME1 Mount Guide2 Housing Bottom3 Holder Panning4 Holder Tlit5 Holder Rotate6 Cover IR Led (LED Type)7 Cover Sun Shield (Sta

6. INSTALLATION• MONITOR CONNECTION11When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera fro

7. DIMENSIONSUnit(mm)12Ø100Ø108.5Ø1354596.9

8. SPECIFICATIONModel Standard Type LED TypeImage DeviceSONY 1/3” 2.1M Progressive Color CMOS Image SensorEffective Pixels 1984 (H) x 1105 (V) 30fpsUn

9. OSD MANUAL• Menu structureSETUPEXPOSUREWHITE BALANCEWDR / BLCDNRDAY & NIGHTIMAGESPECIALSYSTENRESET DATA ALLEXTMain Sub Menu Sub MenuEXPOSUREBRI

9. OSD MANUALMain Sub Menu Sub MenuDAY & NIGHTCOLOR /B&W /AUTOD&N DETECT AGC / SENSE (LED Type Only)DELAY 1sec, 3, 5, 10, 15, 20, 25, 30,

169. OSD MANUAL• Function Description0. SETUP- EXPOSURE : Go sub menu for camera exposure control.- WHITE BALANCE : Go sub menu for camera white balan

179. OSD MANUAL3. WDR/BLC- MODE : Select WDR / BLC mode.• WDR : Act in wdie dynamic rage mode. Controled video frame rate in 1/2. • BLC : Act in Backl

189. OSD MANUAL- HLMASK : Mask image high light area.• LEVEL : Select high light level.• COLOR : Select mask color.- PATTERN : Color bar display Selec

These servicing instructions are for use by qualied service personnel only.To reduce the risk of electric shock do not perform any servicing othe

CONTENTS1. CAUTIONS2. IMPORTANT SAFETY INSTRUCTION3. FEATURES4. EQUIPMENT AND ACCESSORIES5. CAMERA COMPONENT DESCRIPTIONS6. INSTALLATION7. DIMENSIONS8

1. CAUTIONS4This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions;1. This device may not cause harm

1. CAUTIONS5Correct Disposal of This Product(Waste Electrical & Electronic Equipment)(Applicable in the European Union and other European countrie

2. IMPORTANT SAFETY INSTRUCTION1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use thi

3. FEATURES• High ResolutionSONY 1 / 3” 2.1 M Progressive Color CMOS Image Sensor, 1920x1080 30fps• Support various digital video output720p60, 720p50

4. EQUIPMENT AND ACCESSORIESCameraTemplate ManualScrews Service Video Output Test Cable8

5. CAMERA COMPONENT DESCRIPTIONS• LED Type• Standard Type9• CONTROL FUNCTION (OSD JOYSTICK)LEFTUPRIGHTDOWNMENU*PRESS INWARD FOR MENUService Video Co
